SURFACE GRINDER MANUFACTURER AND EXPORTER IN INDIA
Surface grinding is one of the oldest and most widely used grinding processes. Grinding Machine in metal working is a machine tool designed to remove material from work piece by means of an abrasive tool. The most commonly used abrasive materials for the surface of grinding wheels are: Aluminum Oxide, Silicon Carbide, Diamond, and Cubic Boron Nitride (CBN). The materials used in the manufacturing of the surface grinding machine ensure high durability, tensile strength and resistivity to adverse conditions. The use of advanced technology in the manufacturing ensures easy operation and low maintenance cost.
Esskay lathe machine tools surface grinders are fabricated with graded casting that helps to eliminate the internal stress and to give high stiffness & stability for all kinds of grinding jobs. The principal motion of a grinding machine is the rotation of the abrasive tool at a velocity that is considerably higher than the feed rate and other motions. Modern surface grinders are semi-automated and once they have been setup, the machining process requires very little operator intervention.
Features:
- Sturdy Construction
- Longer Serving Life
- Hassle-free operations
- Grind very hard or abrasive materials
- High degree of dimensional accuracy
- Produces surface textures of very high finish
- Tooling is less expensive
- Work holding is easier
- Can be done automatically
Some of the advantages of surface grinding machines are:
- Grinding without the effects of over heating
- Higher material removal rate
- Consistent surface qualities
- Reduced mechanical deformation of work pieces
- Tighter control over process parameters
- Cost savings
- Wheel balancers
- Monitoring Sensors
EssKay lathe machines tools is one of the most reputed companies and brand for manufacturing the quality grinding machines, lathe machines, drilling machines and much more in India.
PRODUCTS

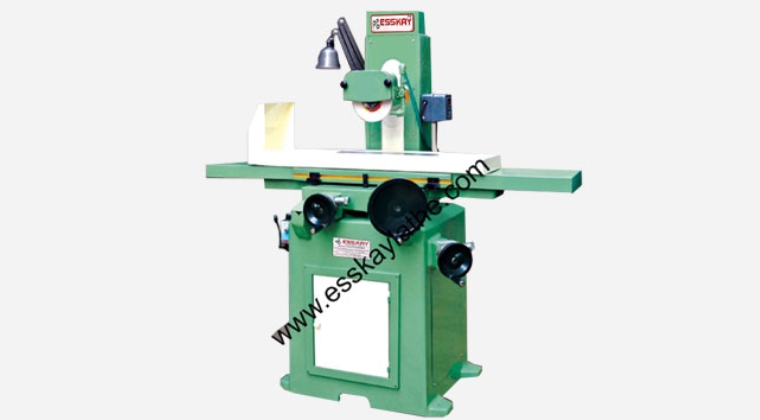

Specifications Of Manual Surface Grinder | ||||
---|---|---|---|---|
ESG-914OT | ESG-1020OT | ESG-1024OT | ESG-1224OT | |
Max. Table Grinding | 200 × 350 | 200 × 450 | 200 × 600 | 300 × 600 |
Max. Magnetic Table Travel | 250 × 360 | 250 x 525 | 250 x 625 | 350 × 650 |
Magnetic Chuck Suitable (optional) | 200 × 300 | 200 × 450 | 200 × 600 | 300 × 600 |
Max. Grinding Height under Wheel | 240 | 240 | 250 | 250 |
Vertical Feed Graduation | 0.01 | 0.01 | 0.01 | 0.01 |
Cross Feed Graduation | 0.05 | 0.05 | 0.05 | 0.05 |
Elevator movement with Microfeed | 0.002 | 0.002 | 0.002 | 0.002 |
Grinding Wheel Head Motor Speed | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm |
Grinding Wheel Head Motor | 0.75 HP - 3 phase | 1 HP - 3 phase | 1.5 HP - 3 phase | 2 HP - 3 phase |
Grinding Wheel Size (DxBxW) | 178 x31.75×12.7 | 178 x31.75×12.7 | 200 x31.75×12.7 | 200 x31.75×12.7 |
Diamond Dresser with Holder | 0.5 CR | 0.5 CR | 0.5 CR | 0.5 CR |
Wooden Case Dimension (L xW xH) | 1070 × 1200 ×1700 | 1070 × 1200 × 1700 | 1300 × 1500 × 1800 | 1400 × 1600 × 1950 |

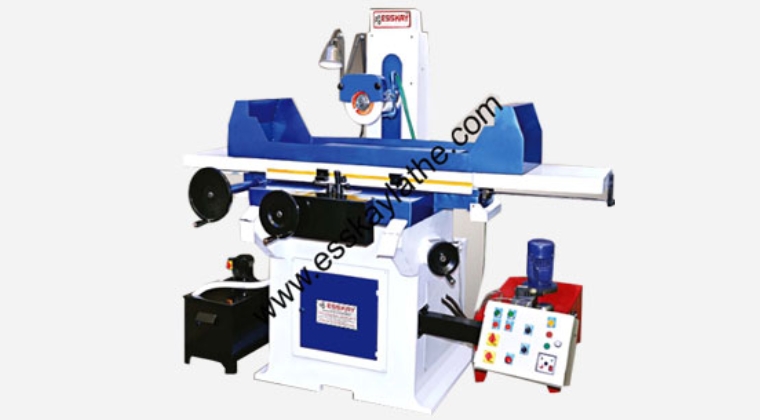

Specifications Of Hydraulic Surface Grinder | |||||
---|---|---|---|---|---|
ESGH-818 | ESGH-1024 | ESGH-1224 | ESGH-1230 | ESGH-1000 | |
Max. Table Grinding | 200 × 450 | 200 × 600 | 300 × 600 | 300 × 750 | 300 × 900 |
Max. Magnetic Table Travel | 250 × 500 | 250 × 650 | 350 x 650 | 350 x 800 | 400 × 1000 |
Max. Grinding Height under Wheel | 225 | 250 | 260 | 275 | 285 |
Grinding Wheel Head Motor Speed | 2800 rpm2800 rpm | 2800 rpm | 2800 rpm | 2800/1400 rpm | 1400 rpm |
Grinding Wheel Head Motor | 1 HP - 3 phase | 1.5 HP - 3 phase | 2 HP - 3 phase | 2 HP - 3 phase | 2 HP - 3 phase |
Grinding Wheel Size (D x BxW) | 180 × 31.75 x 13 | 200 × 31.75 x 13 | 200 × 31.75 x 13 | 200 × 71 x 20 (opt.) | 250 × 71 x 20 (opt.) |
Hyraulic Tank Capacity (Telus - 68) | 35 Ltrs. | 60 Ltrs. | 60 Ltrs. | 70 Ltrs. | 80 Ltrs. |
Hydraulic Pump Motor | 1 HP | 1 HP | 1.5 HP | 1.5 HP | 2 HP |
Auto Gross Feed Increment (Motorised Model Only) | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 |
Max. Longitudinal Table Speed | 15 M/min | 15 M/min | 15 M/min | 15 M/min | 15 M/min |
Vertical Feed Graduation | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Cross Feed Graduation | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Working Pressure | 12 Kg/cm2 | 12 Kg/cm2 | 12 Kg/cm2 | 12 Kg/cm2 | 12 Kg/cm2 |
Net Weight | 1100 Kg | 1200 Kg | 1350 Kg | 1500 Kg | 1650 Kg |
Wooden Case Dimension (L x W x H) | 1050 × 1500 × 1700 | 1050 × 1800 × 1700 | 1200 × 2100 × 1800 | 1200 × 1500 × 1700 | 1350 x 2300 × 1900 |
