Radial drilling machine is one of the types of drilling machines. Radial Drilling Machine is a machine in which the drilling head is mounted to slide along a radial arm which can be rotated, raised, or lowered on a vertical mast to adjust the position of the drill above the work piece. It has transformed a lot of complex manufacturing processes into very simple tasks. It is an important tool that is used in several industrial and commercial operations such as construction, wood working, metal working etc.
Uses of Radial machine
Radial drilling machine is used for numerous functions that include drilling, reaming, boring, tapping, counter boring, lapping, screwing and spot facing. These are capable of drilling a wide range of materials made from cast iron, steel, plastic etc.
Esskay lathe machine and tool is one of the largest manufacture in Radial drilling machine.Our Radial Drilling Machines has a huge demand in domestic as well as international market due to its high performance and longer working life.esskay lathe and machine also manufacturing in industrial machines like shearing machine, lathe machine, cnc machine etc
The radial drill machine India makes it suitable for very large work. Arm of radial drill can be rotated 180 degrees. The most important components of radial drill are as under:
Column:
It is the part of the radial arm drill press which holds the radial arm which can be moved around according to its length
Arm raise:
Adjusts the vertical height of the radial arm along the column.
On/Off Button:
It is the switch that activates and deactivates the drill press.
Arm Clamp:
It secures the column and the arm in place
Table:
It is the area where the work pieces are fed and worked on
Base:
It is the radial arm drill press part that supports the column and the table.
Spindle:
It is the rotated part of the drill press which holds the drill chuck used in holding the cutting tool.
PRODUCTS

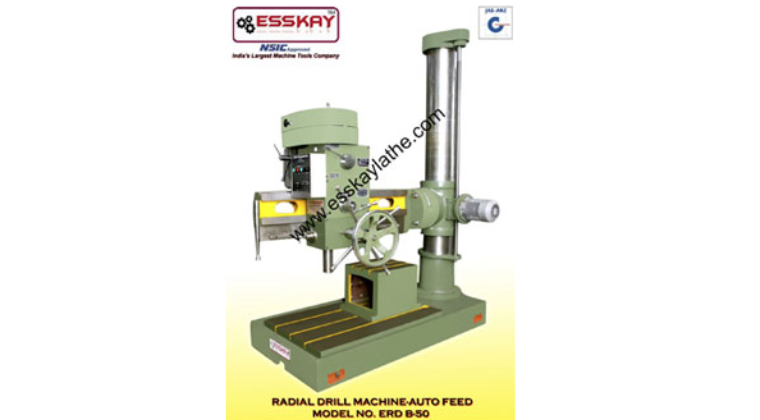

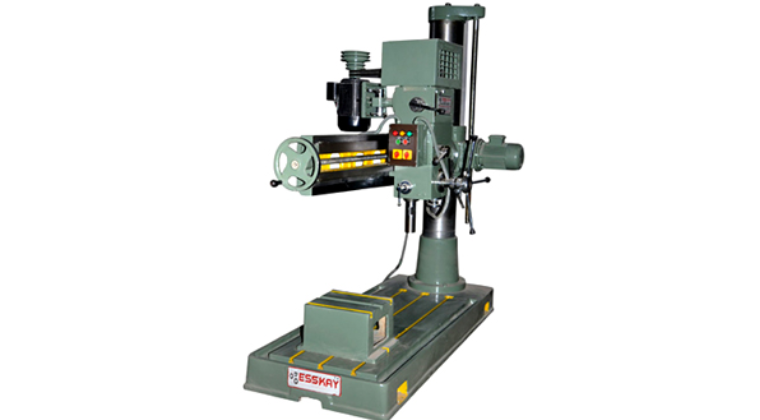

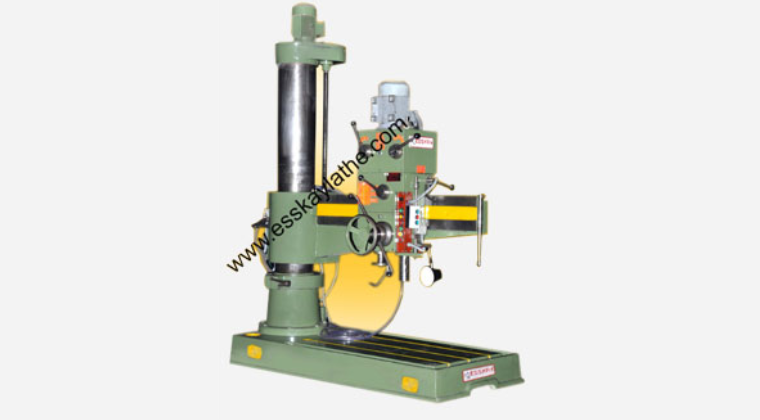

| MODEL | ERD-R 25 / FF | ERD R-40 / FF | ERD R-40 / AF | ERDR-50 / AF |
|---|---|---|---|---|
| CAPACITY | 25 mm | 40 mm | 40 mm | 50 mm |
| DRILLING (M.S) | 25 mm | 40 mm | 40 mm | 5 mm |
| DRILLING ( C.I) | 30 mm | 45 mm | 45 mm | 60 mm |
| BORING (M.S) | 40 mm | 50 mm | 50 mm | 80 mm |
| 15 mm | 20 mm | 20 mm | 25 mm | |
| TAPING (C.1) | 20 mm | 25 mm | 25 mm | 30 mm |
| SPINDLE NOSE | MT-3 | MT-4 | MT-4 | MT-5 |
| RAM DIAMETER | 72 mm | 78 mm | 78 mm | 85 mm |
| TRAVEL OF SPINDLE | 175 mm | 225 mm | 200 mm | 240 mm |
| NO. OD SPINDEL SPEED MIN/MAX. | 70-2000 | 80-2400 | 80-1700 | 50-1200 |
| NO. OF POWER FEEDS | ---- | ---- | 2 | 2 |
| RANGE OF POWER FEEDS | 0.7 & 0.14 | ---- | ---- | 0.10 & 0.20 |
| DRILLING MOTOR | 1 HP X 1440 | 1.5 HP X 1440 | 1.5 HP X 960 | SHP X 1440 |
| LIGHTNING OF ARM | 0.5 HP | 0.5 HP | 0.5 HP | 1 HP |
| COLUMN DIAMETER | 130 mm | 170 mm | 170 mm | 250 mm |
| DIS. FROM SPINDEL TO BASE | 650 mm | 900 mm | 950 mm | 1200 mm |
| DIS. FROM COL. TO CENTRE | 650 mm | 850 mm | 850 mm | 1100 mm |
| DRILLING HEAD TRAVERSE | 300 mm | 1028 mm | 1028 mm | 1680 mm |
| HEIGHT OF MACHINE | 1600 mm | 1875 mm | 1875 mm | 2300 mm |
| WEIGHT | 500 KG | 900 KG | 900 KG | 3000 KG |
| BELT SIZE | A22 & B-40 | A23 & B-45 | A23 & B-45 | ---- |
| MODEL | ERD-B 25 | ERD-B 32 | ERD-B 40 | ERD-B 50 |
|---|---|---|---|---|
| MAXIMUM DISTANCE FROM SPINDLE TO COLUMN | 24" | 32' | 36' | 48' |
| MINIMUM DISTANCE FROM SPINDLE TO COLUMN | 10' | 12' | 12' | 18' |
| MAXIMUM DISTANCE FROM SPINDLE TO BASE PLATE | 30" | 34' | 40' | 50' |
| MINIMUM DISTANCE FROM SPINDLE TO BASE PLATE | 0" | 0" | 0" | 0" |
| DIAMETER OF COLUMN | 5.1/2' | 7" | 9" | 10 |
| NO. OF SPINDLE SPEEDS | 4 Single | 3 Single | 4*2 (WITH TWO 3 SINGLE) | 3 Single |
| 4 Double | 3 Double | SPEED GEAR BOX 3 DOUBLE | 3 Double | |
| RANGE OF SPINDLE SPEEDS | 80-70 RPM | 80-700 RPM | 50-760 RPM | 40-750 RPM |
| WORKING SURFACE OF BASE PLATE | 9" | 11' | 13' | 15' |
| TRAVEL OF SPINDLE | 6" | 8" | 9" | 12' |
| SPINDLE MORSE TAPER NO. | 3 | 4" | 4 | 5 |
| VERTICAL ADJUSTMENT OF ARM | 15" | 18' | 21' | 24' |
| OVER ALL HEIGHT | 60" | 70' | 80' | 90' |
| ARM TILT ANY ANGLE UPTO | 90" | 90' | 90' | 90' |
| FLOOR SPACE REQUIRED | 36"+21" | 44"++25" | 55"+30" | 61'+32" |
| ELETRICALS MOTOR REQUIRED | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. |
| MOTOR RPM | 1400-00 | 960-00 | 960-00 | 960-00 |
| MODEL | EARD - 40B | EARD - 40C | EARD - 50B | EARD - 50C | EARD - 65B |
|---|---|---|---|---|---|
| DRILL HEAD | 40/50 | 40/50 | 50/60 | 50/60 | 65/75 |
| DRILLING CAPACITY (IN STEEL/CAST IRON) | 180 | 180 | 225 | 250 | 325/td> |
| DRILLING DEPTH | MT-4 | MT-4 | MT-5 | MT-5 | MT-5 |
| DRILLING DEPTH | 6(55-665) | 12(56-1000) | 9(45-695) | 12(45-1000) | 12(18-810) |
| TAPER SPINDLE NOSE SCOKET | 3(0.1 to 0.2) | 3(0.1 to 0.2) | 3(0.1 to 0.2) | 6(0.125 to 1.25) | 6(0.125 to 1.25) |
| NO. OF SPINDLE SPEED/ RANGE (RPM) | 1.5 KW | 2.2 KW | 2.2 KW | 3.7 KW | 3.7 KW |
| NO. OF SPINDLE FEED/ RANGE (RPM) | 40/50 | ||||
| DRILL POWER | 180 | 1050 | 1100 | 1300 | 1700 |
| CAPACITY | MT-4 | 375 | 450 | 450 | 500 |
| DRILLING RADIUS MAX(A) | 6(55-665) | 675 | 650 | 850 | 1200 |
| Min.(B) | 3(0.1 to 0.2) | ||||
| DRILLING HEAD TRAVERSE (C) | 1.5 KW | ||||
| DISTANCE BASE PLATE TO SPINDLE | |||||
| MAX(P) | 1000 | 1000 | 1300 | 1300 | 1500 |
| MIN(M) | 225 | 225 | 225 | 325 | 300 |
| DIAMETER OF COLUMN SLEEVE (D) | 255 | 255 | 310 | 310 | 355 |
| WORKING SURFACE OF THE BASE PLATE GXH | 900×680 | 900×680 | 920x830 | 1120x830 | 1500x1020 |
| DIMENSIONS OF BASE PLATE | |||||
| LENGTH X WIDTH X HEIGHT (TXUXV) | 1480×700×200 | 1480×700×200 | 1585x850×200 | 1800x850x200 | 2265x1040x225 |
| ARM ELEVATOR MOTOR | 0.75 KW | 0.75 KW | 1.5 KW | 1.5 KW | 2.2 KW |
| STANDAR BOX TABLE (XXYXZ) | 400×350x350 | 550×420×420 | 550×420×420 | 550×420×420 | 600x500x500 |
| APPROXIMATE WEIGHT OF MACHINE | 1700 Kgs. | 1850 Kgs. | 3000 Kgs. | 3500 Kgs. | 4800 Kgs. |
