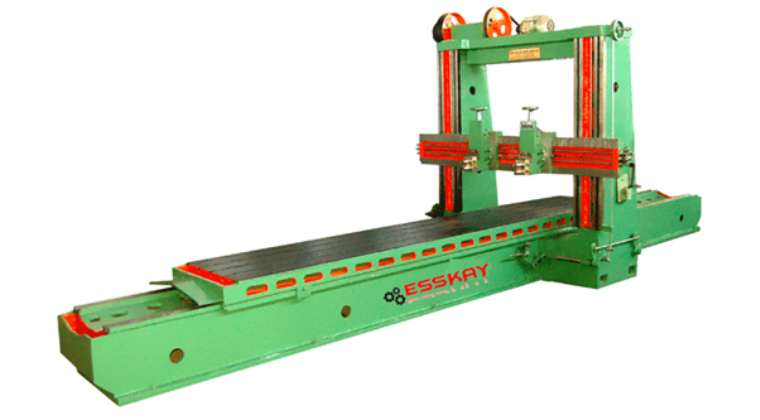

The planner machine is a machine tool designed to produce plane and flat surface on a work piece which is too large or too heavy. It uses linear relative motion. Planer machine is large and heavy in weight. The work piece is securely fixed on a table called platen, and it reciprocates horizontally against a single edged cutting tool. The surface machined may be horizontal, vertical or at an angle .It has marine diesel engine, machine bed and column, blocks and bending plates used for sheet metal work. Double-housing planner is widely used. Operations of a planer machine: The planer is used for:
- Planing flat horizontal, vertical and curved surfaces.
- Planing at an angle and machining dove tails.
- Planing slots and groves.
The planer are available in different types for doing different types and sizes of job; the most common being the standard and double housing planer. The main parts of Planer machine are as below:
Saddle
Saddle is a part to be fixed to ways of cross rail. On its front surface are ways to which tool head is fixed jointly by a vertical feed screw that give for a vertical movement of tool head.
Cross rails
Cross rail is a part that is mounting in a horizontal position of vertical way of the housing. Its function is to take the vertical tool heads which by means of feed screws might be moved as of left to right.
Tool head
Tool head is a component attach to saddle, which contain the tool post, which in turn hold cutting tools. Tool post is hinged to head so that on come back movement of table the cutting tool force is raise with ride on top of the job. This saves the cutting edge of tool as of being damage and permits the automatic saves supply to function with no intrusion.
Table
The table is a huge rectangular casting to mount on top of bed, on sliding V ways. Its function is to hold the job.
Housing
Housing is huge vertical casting to straddle the table and bed of planer with supports machinery for the process of tool heads.
Bed
Bed is a big box which acts as ground work of the machine. Other parts are attaching to or supported by the bed. It is prepared out of cast iron.
Driving and feed mechanism
Drive mechanism is located under the table. The motor drive is mostly at the one side of planner. The tool heads can be fed by power or hand in vertical or cross-wise direction.
Esskay machines and Tools are one of the renowned manufacturers of Industrial machines planner machine manufacturer, CNC machine etc in India.
PRODUCTS
Particulars | Working Stoke | Admit in Columns X Job Heigh | CrossSlide Face | Piller Face | V to V Centre (in Bed) | Bed Width | Bed Length | Table Width | Milling Head (ONE NO.) |
---|---|---|---|---|---|---|---|---|---|
8'x4'x4' | 8' | 48"x48" | 16 | 14" | 24" | 30" | 15" | 36" | 5 H.P |
8'x5'x5' | 8' | 60"x60" | 20" | 18" | 30" | 36" | 15" | 42" | 5 H.P |
'10'x4'x4 | 10' | 48"x48" | 16" | 14" | 24" | 30" | 18' | 36" | 5 H.P |
10'x5'x5' | 10' | 60"x60" | 20" | 18" | 30" | 18" | 42" | 20" | 5 H.P |
12'x4'x4' | 12" | 48"x48" | 16" | 14" | 24" | 30" | 21' | 36" | 5 H.P |
12'x5'x5' | 12' | 60"x60" | 20" | 18" | 30" | 36" | 21' | 42" | 5 H.P |
12'x6'x6' | 12' | 72"x72" | 24" | 20" | 30" | 36" | 21' | 42" | 7.5 H.P |
14'x7'x6' | 14' | 84"x72" | 24" | 20" | 30" | 36" | 24' | 42" | 7.5 H.P |
16'x5'x5' | 16' | 60"x60" | 20" | 18" | 30" | 36" | 27' | 42" | 7.5 H.P |
16'x6'x6' | 16' | 60"x60" | 24" | 20" | 30" | 36" | 27' | 42" | 7.5 H.P |
16'x8'x6' | 16' | 96"x72" | 28" | 24" | 48" | 56" | 27' | 62" | 10 H.P |
20'x5'x5' | 20' | 60"x60" | 20" | 18" | 30" | 36" | 33' | 42" | 7.5 H.P |
20'x6'x6' | 20' | 72"x72" | 24" | 20" | 30" | 36" | 33' | 42" | 7.5 H.P |
20'x8'x6' | 20' | 96" x 72" | 28" | 24" | 48" | 56" | 33" | 62" | 10 H.P |
20'x10'x6' | 20' | 120"x72" | 30" | 24" | 60" | 72" | 33' | 96" | 15 H.P |
22'x6'x6' | 22' | 72"x72" | 24" | 20" | 30" | 36" | 36" | 42" | |
24'x8'x6' | 24' | 96"x72" | 28" | 24" | 48" | 56" | 39' | 62" | 10 H.P |
26'x10'x6' | 26' | 120"x72" | 30" | 24" | 60" | 72" | 42' | 96" | 15 H.P |
